Ford Mustang T5 World Class Transmission Rebuild Ford Mustang T5 World Class Transmission Rebuild Price range: $900.00 through $3,525.00
Ford Mustang MT82 / T56 Magnum / TR6060 Mantic Twin Disc Clutch (Ceremetallic) (26-Spline) Ford Mustang MT82 / T56 Magnum / TR6060 Mantic Twin Disc Clutch (Ceremetallic) (26-Spline) $2,285.00

T56 Magnum / TR6060 G-Force Face Plated Gearset (2.70 RATIO)

$5,750.00

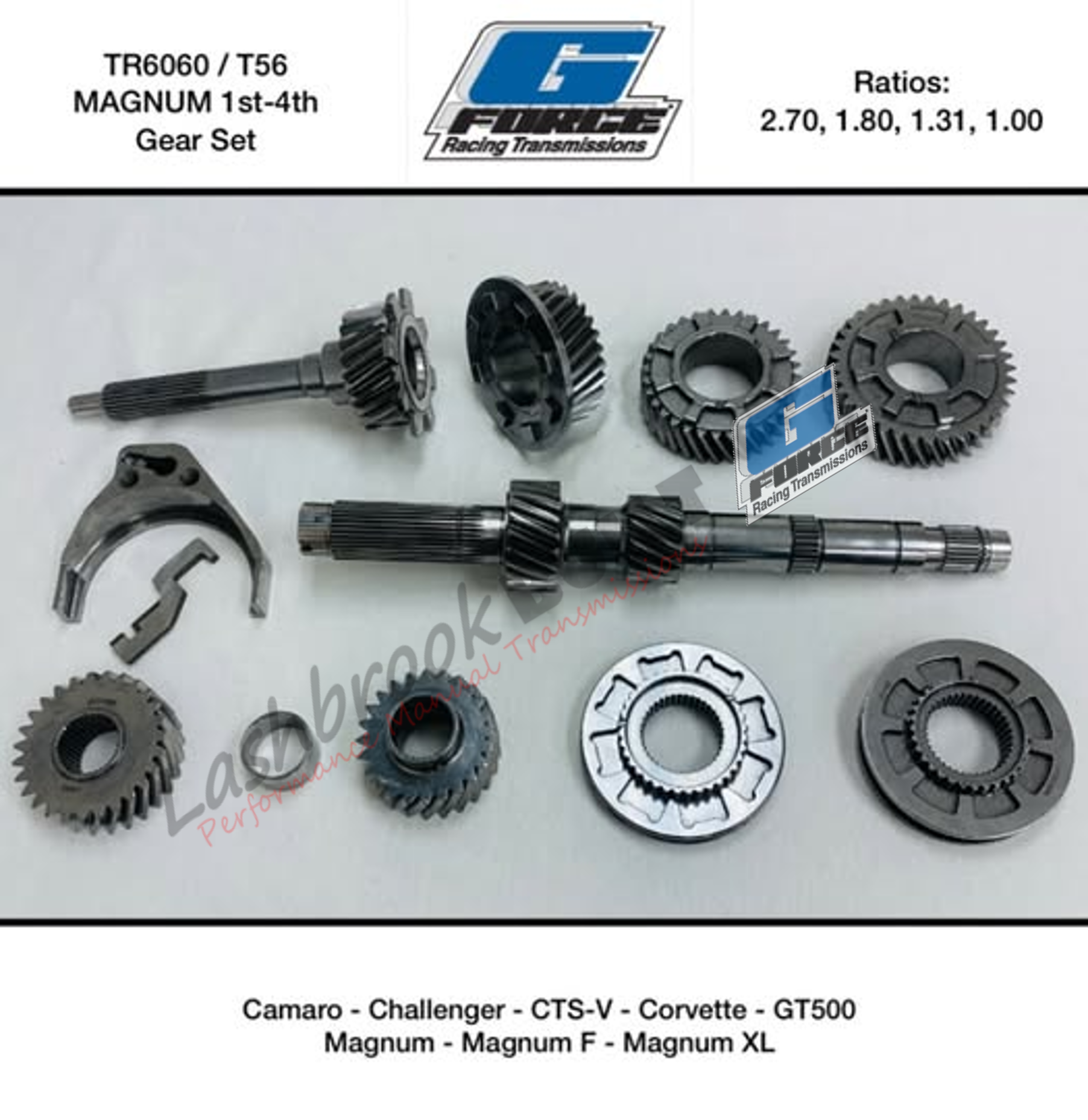

G-Force Face Plated / Dog Ring Gearset (26-Spline – 2.70, 1.80, 1.31, 1.00)
The face plated 9310 gears eliminate the need to worry about missed shifts by removing the stock synchronizers and opening up the engagement window for faster, higher rpm shifting and makes the engagement components substantially more durable increasing longevity with virtually no chance of popping out of gear and will handle approximately 1500+ horsepower depending on vehicle weight, clutch, tire, etc. and allows you to utilize the stock overdrive gears.
COMPLETE KIT INCLUDES —
  • 26-Spline Input Shaft
  • Cluster, 3rd-4th Cluster Gears, 3/4 Spacer
  • 1st-2nd-3rd Dog Ring Gears
  • 1/2-3/4 Dog Ring Synchronizer Assemblies
  • Steel 3/4 Shift Fork, Z-Bar, Billet Interlock
  • (2 qts) GF2000 Oil
ADDITIONAL REQUIREMENTS:
  • Units with Small Tapered Input Bearings – If Pump Bolt through the Front Plate makes contact with Gear internally, replace with Set Screw. This can occur because the smaller Tapered Bearing sits closer to the Front Plate.
  • If you have questions at the time of assembly, please feel free to Contact us.
***Need a custom kit containing ONLY the parts (bearings, pads, carbon liners, etc.) needed to complete your build?  Call, Text, or E-mail Us today!***
Add to Cart
T56 Magnum / TR6060 G-Force Face Plated Gearset (2.70 RATIO)
T56 Magnum / TR6060 G-Force Face Plated Gearset (2.70 RATIO)
$5,750.00

Don’t see what you are looking for?  Call us for

  • Custom Built Rebuild Kit
  • Additional Processing: Cryogen, Shot Peen, Thermal, Surface Enhancement
  • Expedited Shipping
  • International Shipping
Guaranteed Safe Checkout

Home ‣ Shop ‣ Transmission Parts ‣ T56 Magnum / TR6060 ‣ Gears ‣ T56 Magnum / TR6060 G-Force Face Plated Gearset (2.70 RATIO)
T56 Magnum / TR6060 G-Force Face Plated Gearset (2.70 RATIO)
T56 Magnum / TR6060 G-Force Face Plated Gearset (2.70 RATIO)
$5,750.00

Additional information

APPLICATION: No selection

MAGNUM – LS – 26S, MAGNUM – LS – 29S, MAGNUM – FORD – 26S, MAGNUM – F – 26S, MAGNUM – XL – 26S, TR6060 – HELLCAT – 26S, TR6060 – CHALLENGER – NHC – 26S, TR6060 – GT500 – EARLY – 26S – Tapered Bearing, TR6060 – GT500 – LATE – 26S – Needle Bearing/Thrust Washer, TR6060 – CTSV – EARLY – 26S – Tapered Bearing, TR6060 – CTSV – LATE – 26S – Straight Bearing, TR6060 – CAMARO – EARLY – 26S – Tapered Bearing, TR6060 – CAMARO – LATE – 26S – Straight Bearing, TR6060 – CORVETTE – EARLY – 26S, TR6060 – CORVETTE – LATE – 26S, TR6060 – VIPER – 26S
