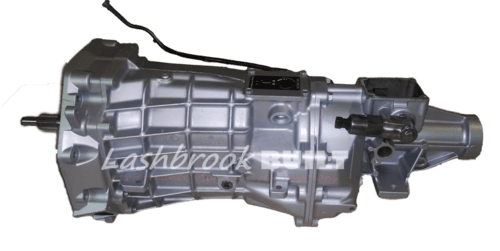

T56 G-Force Transmission Upgrade

Lashbrook BUILT T56 G-Force Transmission Upgrade

The G-Force Face Plated gearset with the optional G-Force 9310 main output shafts have the ability to handle approximately 1200 horsepower and 1000 ft-lb. of torque depending on the application.  Power and torque ratings vary more or less depending upon weight, clutch, tire, RPM, etc.

FLAT RATE LABOR — $500

• Complete teardown, cleaning, inspection, and professional reassembly of the transmission

REPLACEMENT / WEARABLE PARTS — $650

• Carbon Synchro Liners

• Bearings

• Seals

• Small Parts / Snap Rings

• Bronze Shift Fork Pads

• Bronze Shift Bushing

Recommended Parts — $4450

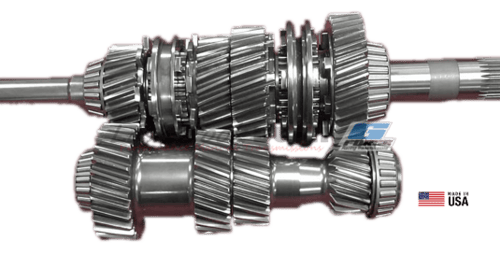

• G-Force Face Plated (1-4) Gear Set (26-Spline – 2.71, 1.78, 1.30, 1.00)

• New Synchronizer Slides

• Chrome Moly Billet Synchronizer Keys

• Billet Throw Out Bearing Guide Tube

• Hard Parts Determined on teardown

Optional Parts — (TBD)

• G-Force 9310 Main Output Shaft (tail house machine work included) ($850)

• Billet Aluminum 1/2 Shift Forks ($210)

• Clutch Fork Pivot Ball

• Additional Upgrades

Processing (optional) — TBD

• Cryogenic Treatment + Shot Peen ($800)

• Thermal Stabilization ($45)

• Surface Enhancement ($400)

• Face Plating (NA)

INCLUDES:  (2 qts) GF2000 Oil

APPLICATION:

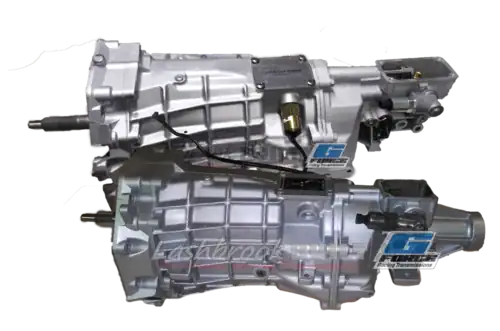

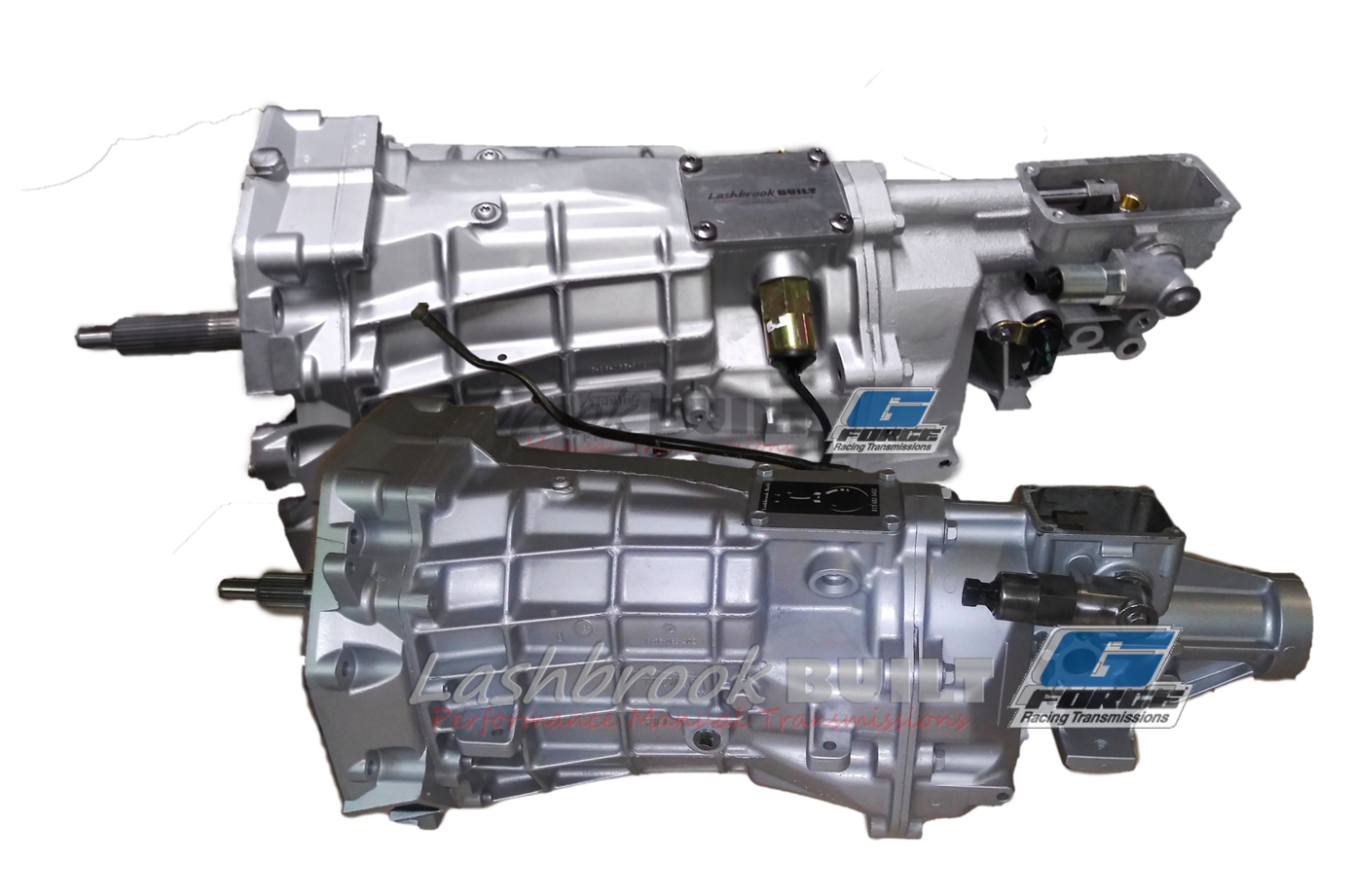

• 2003-2004 Ford Mustang Cobra T56

• 1994-2002 GM F-Body Camaro/Firebird T56

• 1992-2006 Dodge Viper T56

• WILL NOT FIT Corvette, GTO, SSR, or TR6060 !

***All transmissions are custom built and contain variable options…complete rebuild costs cannot be determined until your unit is disassembled and inspected.***

***All transmissions MUST be drained or there is an added fluid disposal fee.***

***Submit your e-mail below or Call Us today to get your custom rebuild started!***
